Glo GLS Led Bulb

Posted by Marcel van der Steen in Led lights, Light measurements No Comments»

glo_8w_and_4w_agrilampGlo Worldwide presents a led bulb. It emits relatively warm white light. It has a bayonet B22 type fitting.

Update Nov 2010: these lamps have been improved, see the results in this article on the new lamps, where 4 of these were measured.

This article shows the measurement results. Many parameters are also found in the Eulumdat file.

See this overview for a comparison with other light bulbs.

Summary measurement data

parameter meas. result remark
Color temperature 3398 K Warm (close to neutral) white
Luminous intensity Iv 20 Cd Measured straight underneath the lamp.
Illuminance modulation index 1 % Measured straight underneath the lamp. Is a measure for the amount of flickering.
Beam angle 160 deg 160º for all C-planes.
Power P 5.6 W
Power Factor 0.90 For every 1 kWh net power consumed, there has been 0.5 kVAhr for reactive power.
THD 49 % Total Harmonic Distortion
Luminous flux 110 Lm
Luminous efficacy 20 Lm/W
CRI_Ra 71 Color Rendering Index.
Coordinates chromaticity diagram x=0.4103 and y=0.3932
Fitting B22 This lamp is connected to the 230 V grid voltage.
PAR-value 0.2 μMol/s/m2 The number of photons seen by an average plant when it is lit by the light of this light bulb. Value valid at 1 m distance from light bulb.
PAR-photon efficacy 0.2 μMol/s/We The toal emitted number of photons by this light, divided by its consumption in W. It indicates a kind of efficacy in generating photons.
S/P ratio 1.4 This factor indicates the amount of times more efficient the light of this light bulb is perceived under scotopic circumstances (ow environmental light level).
D x H external dimensions 60 x 102 mm External dimensions of the lamp.
D x H luminous area 60 x 29 mm Dimensions of the luminous area (used in Eulumdat file). This is the surface of glass surrounding the leds.
form factor bulb
General remarks The ambient temperature during the whole set of measurements was 23.5-24 deg C. The temperature of the glass gets 24 degrees hotter, the hottest area between the fins of the heatsink gets about 43 degrees hotter.
Warm up effect: during the warm up time the illuminance decreases with 23 % and the consumed power with about 18 %.Voltage dependency: the power consumption and illuminance vary when the power voltage varies between 200-250 V.
Measurement report (PDF) olino-pdf
Eulumdat file olino_eulumdat Right click on icon and save the file.
IES file olino_eulumdat Right click on icon and save the file.

Overview table

glo_gls_b22_summary2

The overview table is explained on the OliNo website. Please note that this overview table makes use of calculations, use this data with care as explained on the OliNo site. E (lux) values are not accurate, when within 5 x 60 mm (diagonal length) ≈ 300 mm. Within this distance from the lamp, the measured lux values willl be less than the computed values in this overview as the measurements are then within the near field of the lamp.

Eulumdat light diagram

This light diagram below comes from the program Qlumedit, that extracts these diagrams from an Eulumdat file. It is explained on the OliNo site.

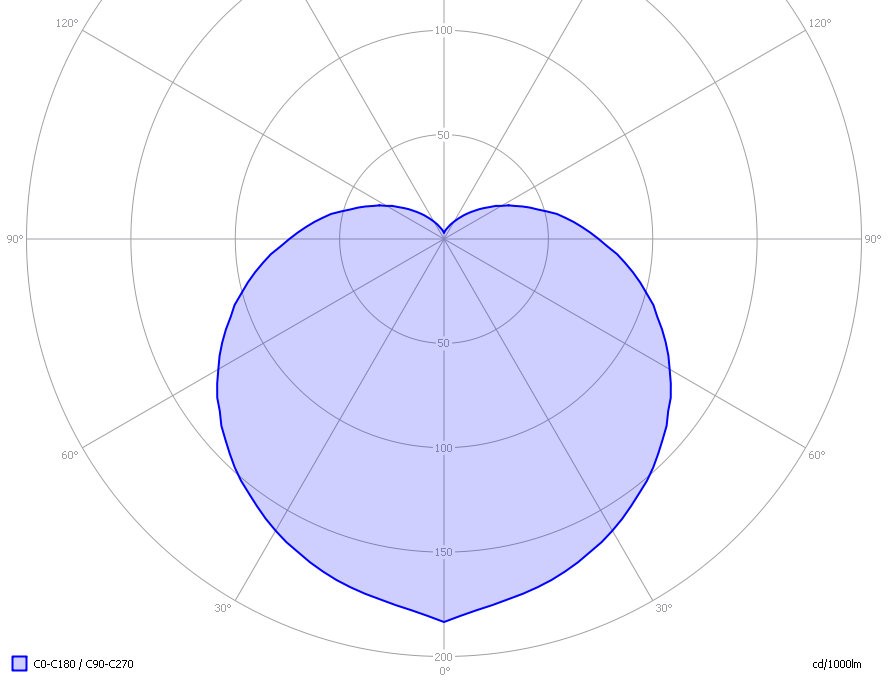

glo_gls_b22_light_diagram

The light diagram giving the radiation pattern.

It indicates the luminous intensity around the light bulb. All the planes give the same results as the lamp is symmetrical along its 1st axis.

Illuminance Ev at 1 m distance, or luminous intensity Iv

Herewith the plot of the averaged luminous intensity Iv as a function of the inclination angle with the light bulb.

glo_gls_b22_pp_avg

The radiation pattern of the light bulb.

This radiation pattern is the average of the light output of the light diagram given earlier. Also, in this graph the luminous intensity is given in Cd.

These averaged values are used (later) to compute the lumen output.

glo_gls_b22_ev_dep_kantelhoek

Intensity data of every measured turn angle at each inclination angle.

This plot shows per inclination angle the intensity measurement results for each turn angle at that inclination angle. There normally are differences in illuminance values for different turn angles. However for further calculations the averaged values will be used.

When using the average values per inclination angle, the beam angle can be computed, being 160º for all C-planes looked at.

Luminous flux

With the averaged illuminance data at 1 m distance, taken from the graph showing the averaged radiation pattern, it is possible to compute the luminous flux.

The result of this computation for this light spot is a luminous flux of 110 Lm.

Luminous efficacy

The luminous flux being 110 Lm, and the power of the light bulb being 5.6 W, yields a luminous efficacy of 20 Lm/W.

Electrical properties

A power factor of 0.90 means that for every 1 kWh net power consumed, a reactive component of 0.5 kVAr was needed.

Lamp voltage 230 VAC
Lamp current 27 mA
Power P 5.6 W
Apparent power S 6.2 VA
Power factor 0.90

Of this light bulb the voltage across ad the resulting current through it are measured and graphed. See the OliNo site how this is obtained.

glo_gls_b22_u_i_waveforms

Voltage across and current through the lightbulb

This waveforms have been checked on requirements posed by the norm IEC 61000-3-2:2006 (including up to A2:2009). See also the explanation on the OliNo website.

glo_gls_b22_harmonics

Harmonics in in the current waveform and checked against IEC61000-3-2:2006

There are no limits for the harmonics for lighting equipment <= 25 W.

The Total Harmonic Distortion of the current is computed as 49 %.

Temperature measurements lamp

ir_0093_aluem09_glassem083

Overview image

The image shows what the results are when measuring directly on the material and when measuring on a piece of tape of which the emissivity is known to be (close to) 0.95.

The differences in temperature shown are corrected with a new emissivity setting that corresponds to the emissivity of the observed material.

ir_0096_emm09

The resulting temperature image of the heatsink part, the emissivity set to 0.9.

ir_0096_emm083

The glass has an emissivity of 0.83.

status lamp > 2 hours on
ambient temperature 25 deg C
reflected background temperature 25 deg C
camera Flir T335
emissivity 0.95
measurement distance 0.3 m
IFOVgeometric 0.4 mm
NETD (thermal sensitivity) 50 mK

The hottest temperature on the lamp is at the heatsink.

Color temperature and Spectral power distribution

glo_gls_b22_powerspectrum_at_1m_distance

The spectral power distribution of this light bulb, energies on y-axis valid at 1 m distance.

The measured color temperature is about 3400 K which is warm (close to neutral) white.

This color temperature is measured straight underneath the light bulb. Below a graph showing the color temperature for different inclination angles.

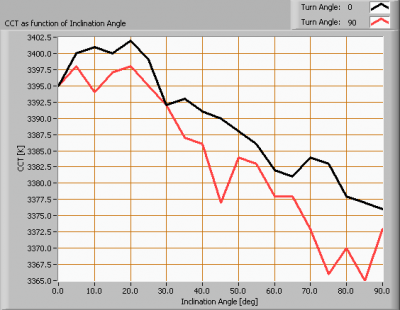

glo_gls_b22_cct_function_of_incl

Color temperature as a function of inclination angle.

The measurement of CCT is measured for inclination angles up to 90º.

The maximum beam angle is 160º, meaning a 80º inclination angle. In this area most of the light is present. The variation in correlated color temperature in this area is about 2 %.

PAR value and PAR spectrum

To make a statement how well the light of this light bulb is for growing plants, the PAR-area needs to be determined. See the OliNo website how this all is determined and the explanation of the graph.

glo_gls_b22_par_spectra_at_1m_distance

The photon spectrum, then the sensitivity curve and as result the final PAR spectrum of the light of this light bulb

parameter value unit
PAR-number 0.2 μMol/s/m²
PAR-photon current 0.9 μMol/s
PAR-photon efficacy 0.2 μMol/s/W

The PAR efficiency is 63 % (valid for the PAR wave length range of 400 – 700 nm). So maximally 63 % of the total of photons in the light is effectively used by the average plant (since the plant might not take 100 % of the photons at the frequency where its relative sensitivity is 100 %).

S/P ratio

The S/P ratio and measurement is explained on the OliNo website. Here the results are given.

glo_gls_b22_s_and_p_spectra_at_1m_distance
The power spectrum, sensitivity curves and resulting scotopic and photopic spectra (spectra energy content defined at 1 m distance).

The S/P ratio is 1.4.

More info on S/P ratio can be found on the OliNo website.

Chromaticity diagram

glo_gls_b22_chromaticity

The chromaticity space and the position of the lamp’s color coordinates in it.

The light coming from this lamp is inside the area designated with class A. This class A is an area that is defined for signal lamps, see also the OliNo website.

Its coordinates are x=0.4103 and y=0.3932.

Color Rendering Index (CRI) or also Ra

Herewith the image showing the CRI as well as how well different colors are represented (rendered). The higher the number, the better the resemblance with the color when a black body radiator would have been used (the sun, or an incandescent lamp). Practical information and also some critics about the CRI can be found on the OliNo website.

Each color has an index Rx, and the first 8 indexes (R1 .. R8) are averaged to compute the Ra which is equivalent to the CRI.

glo_gls_b22_cri

CRI of the light of this lightbulb.

The value of 71 is lower than 80 which is considered a minimum value for indoor usage.

Note: the chromaticity difference is 0.0005 indicates the distance to the Planckian Locus. There is no norm yet that states what the max deviation from white light is allowed to be. A reference with signal lights as a reference is given in the chromaticity diagram.

Voltage dependency

The dependency of a number of lamp parameters on the lamp voltage is determined. For this, the lamp voltage has been varied and its effect on the following light bulb parameters measured: illuminance E_v [lx], the lamppower P [W] and the luminous efficacy [Lm/W].

glo_gls_b22_voltagedependency

Lamp voltage dependencies of certain light bulb parameters, where the value at 230 V is taken as 100 %.

The illuminance and consumed power do vary significantly when the voltage is varied.

When the voltage at 230 V varies with + and – 5 V, then the illuminance varies < 2 %, so when abrupt voltage changes occur this effect is not visible in the illuminance output.

Warm up effects

After switch on of a cold lamp, the effect of heating up of the lamp is measured on illuminance E_v [lx], the lamppower P [W] and the luminous efficacy [lm/W].

glo_gls_b22_startupeffect

glo_gls_b22_startupeffect_end

Effect of warming up on different light bulb parameters. At top the 100 % level is put at begin, and at bottom at the end.

The warm up time is about 35 minutes. During that time the illuminance decreases with 23 % and the consumed power with about 18 %.

Measure of flickering

An analysis is done on the measure of flickering of the light output by this light bulb. See the OliNo site for more information.

glo_gls_b22_flicker_waveforms

The measure of fast illuminance variartion of the light of the light bulb

parameter waarde eenheid
Flicker frequency 100 Hz
Illuminance modulation index 1 %

The illuminance modulation index is computed as: (max_Ev – min_Ev) / (max_Ev + min_Ev).
