presents a measurement set of two 1500 mm 5mm -LED tubes inside a built-in luminaire. In this article the measurement data can be found as well as in Eulumdat format.
See this overview for a comparison with other light bulbs.

Summary measurement data

parameter	meas. result	remark
Color temperature	6390 K	Bright white
Luminous intensity Iv	799 Cd
Beam angle	118 deg	A wide beam, which is to be expected from an FL-tube.
Power P	36.8 W
Power Factor	0.91	For every 1 kWh net power consumed, there has been 0.45 kVAhr for reactive power.
Luminous flux	2311 lm
Luminous efficacy	63 lm/W
CRI_Ra	82	Color Rendering Index.
Coordinates chromaticity diagram	x=0.314 and y=0.333
Fitting	FL-tube
L x W x H external dimensions	1500 x 300 x 87 mm	External dimensions of the built-in luminaire
L x W dimensions luminous area	1455 x 265 mm	Dimensions of the luminous area (used in Eulumdat file). This is the area of the reflector zone inside the luminaire.
General remarks		The ambient temperature during the whole set of measurements was 23-24 deg C. Warm up effect:small effect, the temperature of the tube is almost stable after 30 minutes. Voltage dependency: consumed power and illuminance are dependent from the light bulb voltage. It is a linear dependence. For the eulumdat file follow this link.

Eulumdat lichtdiagram

With this article an eulumdat file is added. This is a file that a.o. indicates the radiation pattern around the light bulb. There are more parameters in the file, and these all can be read with help of the free open source program Qlumedit.

An interesting graph is the light diagram, indicating the intensity in the C0-C180 and the C90-C270 plane.

The light diagram giving the radiation pattern in the C0-C180 and C90-C270 planes.
The C0-C180 plane is perpendicular to the length axis of the tube. It indicates the luminous intensity sideways of the tube.

The C90-C270 plane indicates the radiation pattern in the plane in the same direction as the tube’s length.

Illuminance Ev at 1 m distance, or the luminous intensity Iv

Herewith the plot of the averaged luminous intensity Iv as a function of the inclination angle with the light bulb.

The radiation pattern of the light bulb.

This radiation pattern shows a wide beam.

These averaged values are used (later) to compute the lumen output.

The intensity measurements (of each turn angle) as function of inclination angle.

This plot shows per inclination angle the intensity measurement results for each turn angle at that inclination angle.

When using the average values per inclination angle, the beam angle can be computed, being 118 degrees. However, this value is dependent from the plane observed.

Luminous flux

With the averaged illuminance data at 1 m distance, taken from the graph showing the averaged radiation pattern,it is possible to compute the luminous flux.

The result of this computation for this lamp is a luminous flux of 2311 lm.

Luminous efficacy

The luminous flux being 2311 lm, and the power of the lightbulb being 36.8 W, yields a luminous efficacy of 63 lm/W.

A power factor of 0.91 means that for every 1 kWh net power consumed, a reactive component of 0.45 kVAr was needed.

Light bulb voltage	230 V
Light bulb current	175 mA
Power P	36.8 W
Apparent power S	40.3 VA
Power factor	0.91

Color temperature and Spectral power distribution

The spectral power distribution of this light bulb.

The measured color temperature is about 6400 K, bright white.

Chromaticity diagram

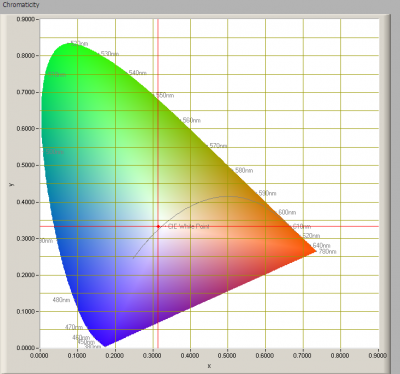

The chromaticity space and the position of the lamp’s color coordinates in it.

The light coming from this lamp is close to the Planckian Locus (the black path in the graph).

Its coordinates are x=0.314 and y=0.333.

Color Rendering Index (CRI) or also Ra

Herewith the image showing the CRI as well as how well different colors are represented (rendered). The higher the number, the better the resemblance with the color when a black body radiator would have been used (the sun, or an incandescent lamp).

Each color has an index Rx, and the first 8 indexes (R1 .. R8) are averaged to compute the Ra which is equivalent to the CRI.

CRI of the light of this lightbulb.

The value of 82 is higher than 80 which is considered a minimum value for indoor usage.

Note: the chromaticity difference is 0.0014 indicates the distance to the Planckian Locus. Its value is ki\ower than 0.0054, which means that the calculated CRI result is meaningful.

Voltage dependency

The dependency of a number of lamp parameters on the lamp voltage is determined. For this, the lamp voltage has been varied and its effect on the following lamp parameters measured: illuminance E_v [lx], color temperature CT or correlated color temperature CCT [K], the lamppower P [W] and the luminous efficacy [lm/W].

Lamp voltage dependencies of certain light bulb parameters, where the value at 230 V is taken as 100 %.

The power consumed and the illuminance measurements depend on the light bulb voltage applied. This dependence is linear.

To check whether this dependency can lead to visible changes in illuminance for possible grid voltage changes, it is noted what variations occur when the lamp voltage varies around 230 V + and – 5 V. Then the illuminance varies between + and – 3 %. It will surely not be visible.

Warm up effects

After switch on of a cold lamp, the effect of heating up of the lamp is measured on illuminance E_v [lx], color temperature CT or correlated color temperature CCT [K], the lamppower P [W] and the luminous efficacy [lm/W].

Effect of warming up on different light bulb parameters. The 100 % level is put at begin.

No noticeable effects seen. The temperature is almost stable after 30 minutes since the rate of change is low at that time.
